Imaging Products

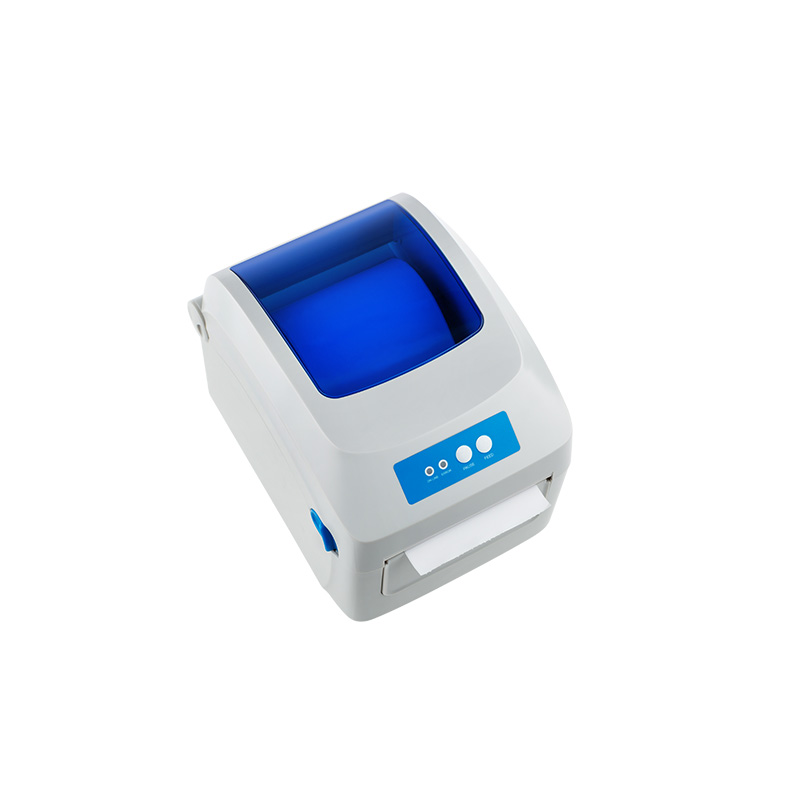

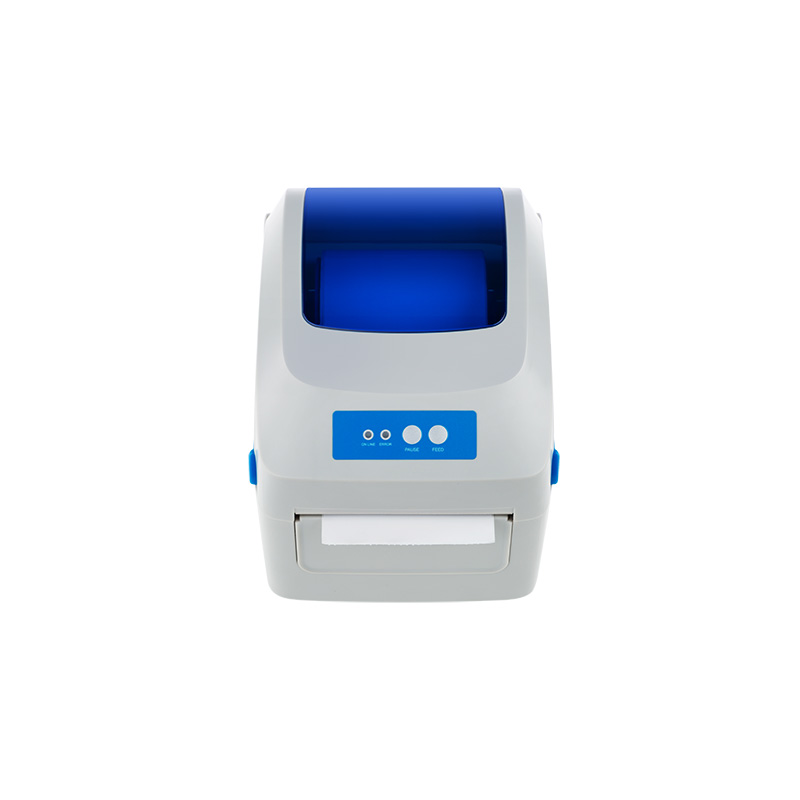

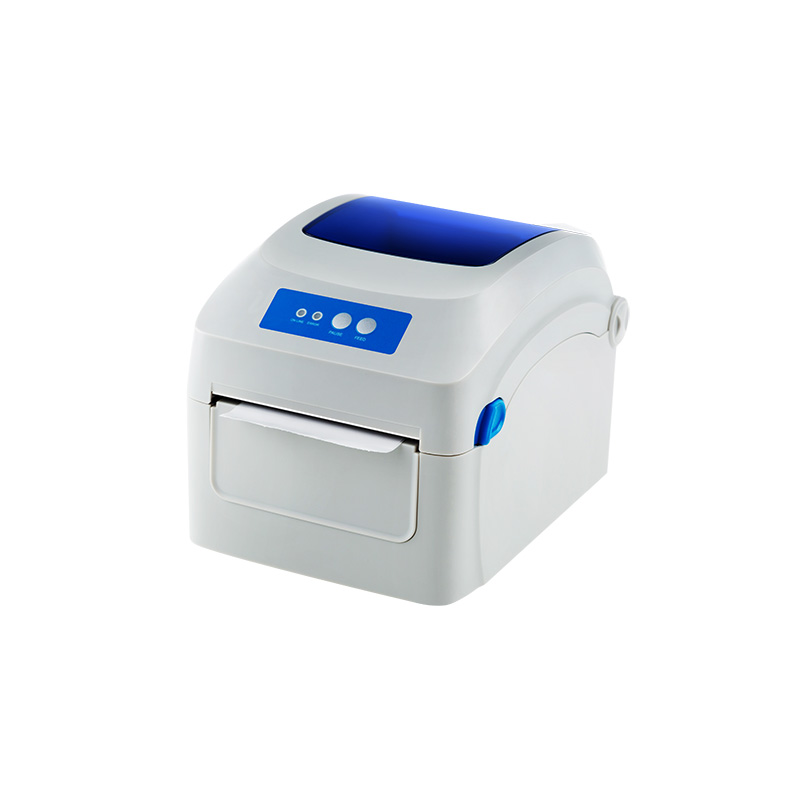

PR-1324D Thermal Barcode Printer
Description
- 2~8inch high speed printing
- Support barcode 2D printing
- Meets the different needs of media formats within the range of 40~118mm
- Automatic paper detection function
- Temperature adaptive control
- Modular design to meet different customer needs
Printer specs
Printing mode:
Direct thermal
Printing instructions:
TSPL
Resolution:
203DPI
Printing speed:
2~8inch/s（200mm/s）
Max. printing width:
104mm (max)
Interface:
Standard：USB
Optional：USB + Bluetooth, USB+WIFI
Consumables
Paper type:
ontinuous paper, gap paper,
folding paper, black mark paper
Media width:
40mm-118mm (including the base)
Paper roll outer diameter:
130mm (OD)
Paper roll outer diameter:
130mm (OD)
Media handling:
Tear-off
Paper output method:
Front paper output
Power supply
Power input:
DC24V 2.5A
Physical parameters
Working environment:
5~40℃, 20%~90%
non-condensing
Storage environment:
-25~55℃，20%~93%
non-condensing
Weight:
1.59kg
Product size:
245×186×176mm
Reliability
TPH (wear resistance):
30km
